SIBESTAR
Market leader of road signs. Road marking machines, traffic lights and road marking and road signs.
Road markings

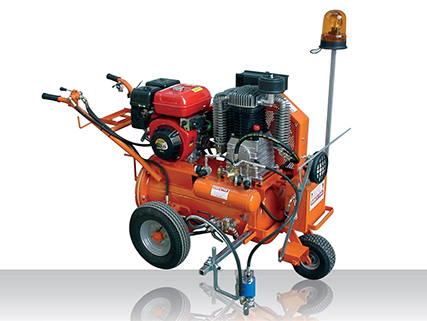

Sibeline 90 I

The equipment is constructed for spraying pre-mixed solvent and water based paints, including reflective and epoxy paints.
We do no welding on our tanks after they have been tested


TECHNICAL CHARACTERISTICS

- 13,5 Hp petrol motor, cord starter with automatic rewind, air cooled, silenced, centrifugal clutch disconnects compressor at low revs and facilitates starting.
- Quick starting at all temperatures.
- Compressor - Capacity 785-1.020 l/min. approx.
- High resistance gun for normal and reflective paint.
Gun start and stop actioned by pneumatic command with button on handle.
- Spray set with pneumatic gun, telescopic.
- The gun is easily disconnected to facilitate packing and transport. 90 litre capacity stainless steel to PED standard paint tank incorporated stirrer.
- Working pressure 4,5 atmospheres.
- 3,3 litre PED stainless steel air reserve tank
- 3.3 litre capacity PED stainless steel diluter tank for cleaning spray set.
- Two pressure regulators with manometers
- Two certified safety valves
- Pneumatic coupling to regulate air pressure
- Two non-return valves
- Controls on handlebar, easily accessible.
- Three wheels (one adjustable front wheel and two rear drive wheels) with air-filled tyres to allow very tight turns.
- Two hydraulic motors on the two rear wheels, to overcome steep gradients and guarantee good stability, both straight ahead and in curves.
- Box for transporting tools, complete with useful tools.
- Hydraulic brake and parking brake on one of rear wheels
- Dimensions: 1,90m x 1,10m x 1,10m high.
- Empty weight: 260 kg approx.
- Supplied with 5m of extension tubing for using the gun where you want.
- The equipment is constructed for spraying pre-mixed solvent and water based paints, including reflective and epoxy paints.
- We do no welding on our tanks after they have been tested

ACCESSORIES AVAILABLE ON REQUEST

- Extra manual gun.
- Extra manual gun with rigid extension.
- Pneumatically-controlled disc unit.
- TELESCOPIC UNIT with SELF-LEVELLING wheel.
- Pneumo-mechanical automatic line marker.
- Spray box to paint lines
- Electric start.
- Operator trolley
- Additional 20-litre PED stainless steel tank for coloured paints.
- Flashing light*
- Illumination light*.
- Electronic line tracing*.

*In the version with electrical starter.
